Generate a time-domain dataset
addpath('DeepMIMO_functions') dataset_params = read_params('DeepMIMOv2_example_3_DT_params.m'); [DeepMIMO_dataset, dataset_params] = DeepMIMO_generator(dataset_params);
DeepMIMO Dataset Generation started Reading the channel parameters of the ray-tracing scenario O1_60 Basestation 1 Constructing the DeepMIMO Dataset for BS 1 - Percentage completed: 100.0 DeepMIMO Dataset Generation completed
Generate pulses shifted to path ToAs

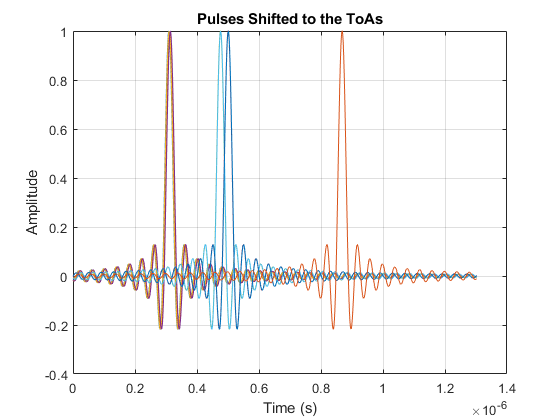

Select a transmit basestation and a receive user pair. Determine time values for the channel to be sampled. Generate sinc pulses at path ToA values. Plot the result.
ue_idx = 1; % First UE bs_idx = 1; % First BS path_ToA = DeepMIMO_dataset{bs_idx}.user{ue_idx}.path_params.ToA; % Time of Arrival BW = dataset_params.bandwidth*1e9; upsampling_factor = 100; sampling_duration = (BW*upsampling_factor); % Sampling rate 1/(BW*upsampling_factor) total_duration = max(path_ToA)*1.5; % A total duration including all paths t = 0:(1/sampling_duration):total_duration; % the ADC time samples path_pulses = pulse_sinc((t-path_ToA')*BW); % Generate sinc centered at ToA values - sampled at time samples figure; plot(t, path_pulses) xlabel('Time (s)') ylabel('Amplitude') title('Pulses Shifted to the ToAs') grid on;

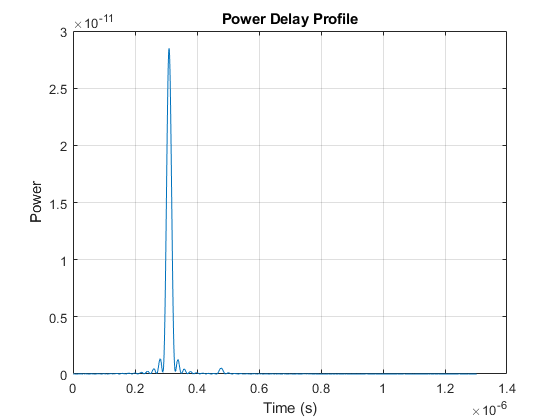

Calculate and visualize power delay profile
Multiply time samples of each shifted pulse with the corresponding array response function of the path.
TD_channel = DeepMIMO_dataset{bs_idx}.user{ue_idx}.channel; % num_RX x num_TX x num_paths
path_pulses = reshape(path_pulses, 1, 1, size(path_pulses, 1), size(path_pulses, 2)); % Make the pulses 1 x 1 x num_paths x time_samples
time_response = squeeze(sum(TD_channel .* path_pulses , 3)); % Elementwise multiplication of the TD channel with pulses result in num_RX x num_TX x num_paths x time_samples
% Sum over paths to obtain time samples. The resulting matrix size is num_RX x num_TX x time_samples (corresponding to variable t)
figure;
channel_power = abs(squeeze(time_response(1, 1, :))).^2; % Channel power response from the first BS antenna to the first UE antenna
plot(t, channel_power)
xlabel('Time (s)')
ylabel('Power')
title('Power Delay Profile')
grid on;
