O1 (Outdoor 1) Scenario
O1 scenario
- An outdoor scenario of two streets and one intersection
- 18 base stations and more than a million candidate users!
- Datasets are available at operating frequencies 3.4 GHz, 3.5 GHz, 28 GHz, and 60 GHz
Key components
- 18 base stations (BSs): BS1-BS18. The height of all BSs is 6 m.
- Each antenna array element at each BS is an isotropic antenna
- The main street has 12 BSs (BS1-BS12), 6 on each side.
- The BSs on one side of the main street are separated by 52 m from the BSs on the other side.
- 100 m separation between
- BS1, BS3, and BS5
- BS2, BS4, and BS6
- BS7, BS9, and BS11
- BS8, BS10, and BS12
- 62 m separation between
- BS6 and BS8
- BS5, and BS7
- BS13-BS18 are mainly covering the second street, 3 on each side.
- 150 m separation between
- BS13, BS15, and BS17
- BS14, BS16, and BS18
- 52 m separation between
- BS13 and BS14
- BS15 and BS16
- BS17 and BS18
- Three uniform x-y user grids (UGs): UG1, UG2, and UG3.
- Total number of users = 1,184,923 users
- The first user in every user grid is always the user with the lowest (x,y) coordinate
- The height of all user grids is 2 m
- Each antenna array element at each user is an isotropic antenna
- First user grid (UG1)
- Distributed on the main street (the horizontal one) with a length of 550 m and width of 35 m

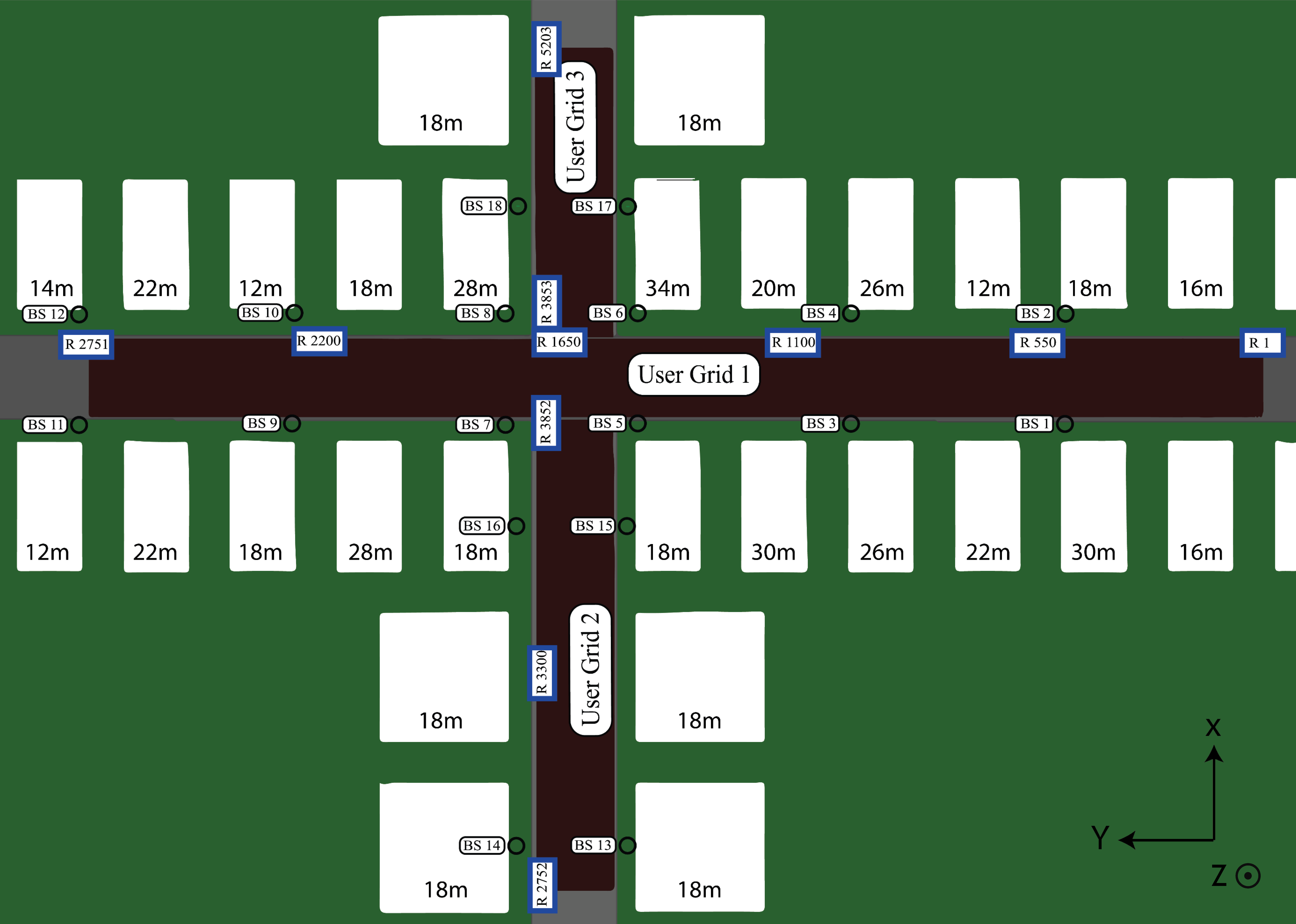

- Starts from the right on Figure 1 after 15m of the street starting point
- Ends on the left of Figure 1 before the street ending point
- Accessed from Row 1 to Row 2751 (2751 rows in total)
- 181 users per row (181 users with the same y coordinate)
- 20 cm spacing between adjacent users
- Number of users in UG1 = 497,931 users
- Second user grid (UG2)
- Distributed on the southern side of the cross street (the vertical street) as shown in Figure 1
- Accessed from Row 2752 to Row 3852 (1101 rows in total)
- 181 users per row (181 users with the same y coordinate)
- 20 cm spacing between adjacent users
- Number of users in UG2 = 199,281 users
- Third user grid (UG3)
- Distributed on the second cross street (the vertical street on the left side of Figure 2)
- Accessed from Row 3853 to Row 5203 (1351 rows in total)
- 361 users per row (361 users with the same y coordinate)
- 10 cm spacing between adjacent users
- Number of users in UG3 = 487,711 users
- The main street (the horizontal one) is 600 m long and 40 m wide
- the cross street (the vertical one) is 440 m long and 40 m wide
- The two streets have buildings on both sides
- The height of every building is written on it in Figure 1
- Along the main street, all the buildings have bases of the same dimensions, 30 m x 60 m
- In the second street, the buildings have bases of 60 m x 60 m
- As for the propagation model, each channel path can undergo a maximum of 4 reflections before reaching the receiver.
Download the ray-tracing data files of the O1 scenario:
- 140 GHz operating frequency: ‘O1_140’ scenario (zipped file) or ‘O1_140’ scenario (folder)
- 60 GHz operating frequency: ‘O1_60’ scenario (zipped file) or ‘O1_60’ scenario (folder)
- 28 GHz operating frequency: ‘O1_28’ scenario (zipped file) or ‘O1_28’ scenario (folder)
- 3.5 GHz operating frequency: ‘O1_3p5’ scenario (zipped file) or ‘O1_3p5’ scenario (folder)
- 3.4 GHz operating frequency: ‘O1_3p4’ scenario (zipped file) or ‘O1_3p4’ scenario (folder)
Applications of the O1 scenario
