City_12_FortWorth Scenario
DeepMIMO-City Scenario 12
- An outdoor scenario constructed based on a section of FortWorth
- GPS bounding box (32.86085834, -97.2834463, 32.86275613, -97.28150025)
- 3 base stations and 6192 users are available!
- Dataset is available at operating frequency 3.5 GHz
Key components
- 3 base stations (BSs): BS1. The height of all BSs is 6 m.
- Each antenna array element at the BS is modeled as an isotropic antenna
- One uniform x-y user grids (UGs)
- Total number of users = 6192 users
- The first user in the user grid is always the user with the lowest (x,y) coordinate
- The height of all user grids is 2 m
- Each antenna array element at each user is an isotropic antenna

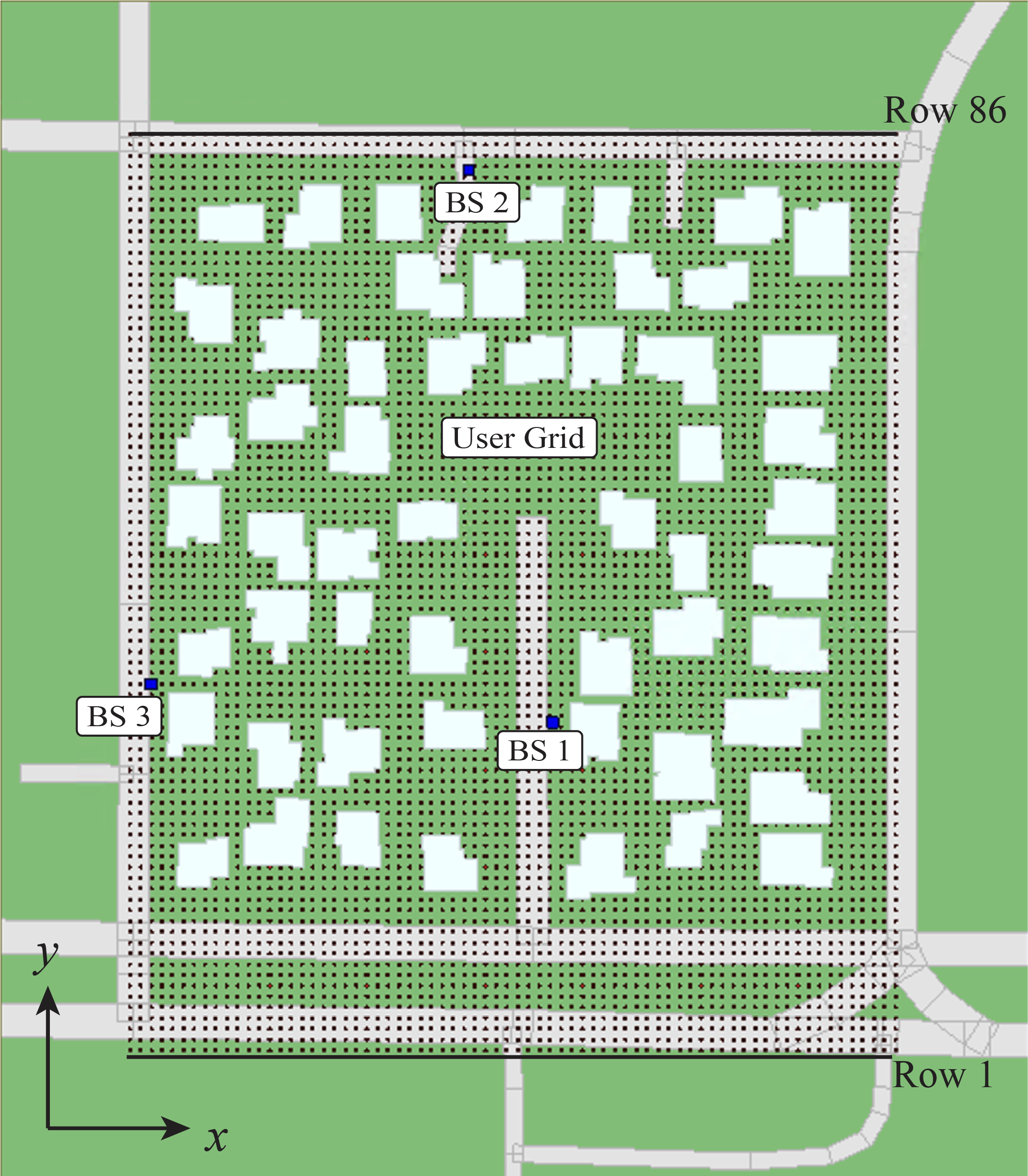

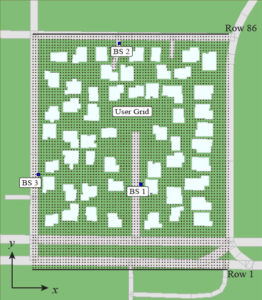

- User grid
- Uniformly distributed in the area
- Accessed from Row 1 to Row 86
- 72 users per row
- 2.5 m spacing between adjacent users
- Total number of users = 6192 users

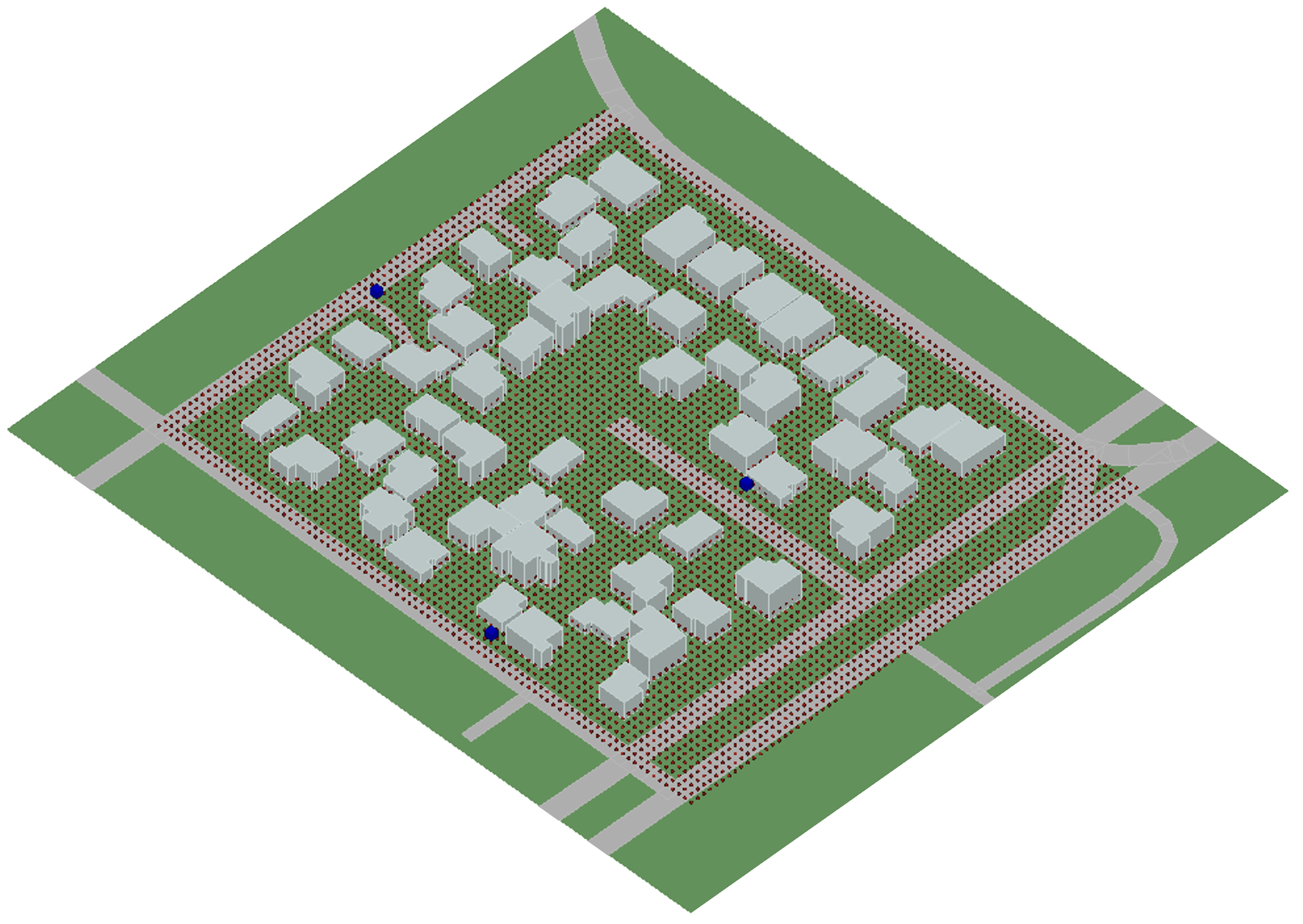

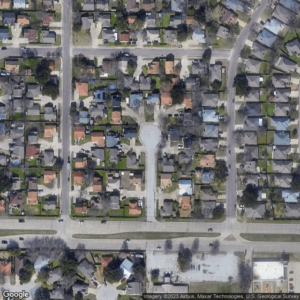

- The site is constructed base on a section of FortWorth
- The ITU concrete, ITU wet earth, and asphalt are adopted as materials for the buildings, the terrain, and the streets, respectively
- The ray-tracing angle spacing is 0.25° (degree)
- As for the propagation model, each channel path can undergo a maximum of 3 reflections before reaching the receiver
Note
The maximum number of reflections along each propagation path is set to 3 in the ray tracing simulation.
Under this configuration, some users in the scenario do not have any propagation path with the base station.
Figure 4. LoS/NLoS/NoPath users of BS1
Figure 5. LoS/NLoS/NoPath users of BS2
Figure 6. LoS/NLoS/NoPath users of BS3
Download the ray-tracing data files of the City_12_FortWorth Scenario
- 3.5 GHz operating frequency: ‘City_12_FortWorth Scenario’ (zipped file) or ‘City_12_FortWorth Scenario’ (folder)
- 28 GHz operating frequency: ‘Boston5G_28’ scenario (zipped file) or ‘Boston5G_28’ scenario (folder)
- 28 GHz operating frequency: ‘Boston5G_28’ scenario (zipped file) or ‘Boston5G_28’ scenario (folder)
